vlayer provides time-travel functionality. It allows changing the block number of the execution location and accessing the blockchain state at the given block. It is made possible by Chain Proofs.

Chain Proof

vlayer executes Solidity code off-chain and proves the correctness of that execution on-chain. For that purpose, it fetches state and storage data and verifies it with storage proofs.

Storage proofs prove that a piece of storage is part of a block with a specific hash. We say the storage proof is 'connected' to a certain block hash.

However, the storage proof doesn't guarantee that the block with the specific hash actually exists on the chain. This verification needs to be done later with an on-chain smart contract.

Motivation

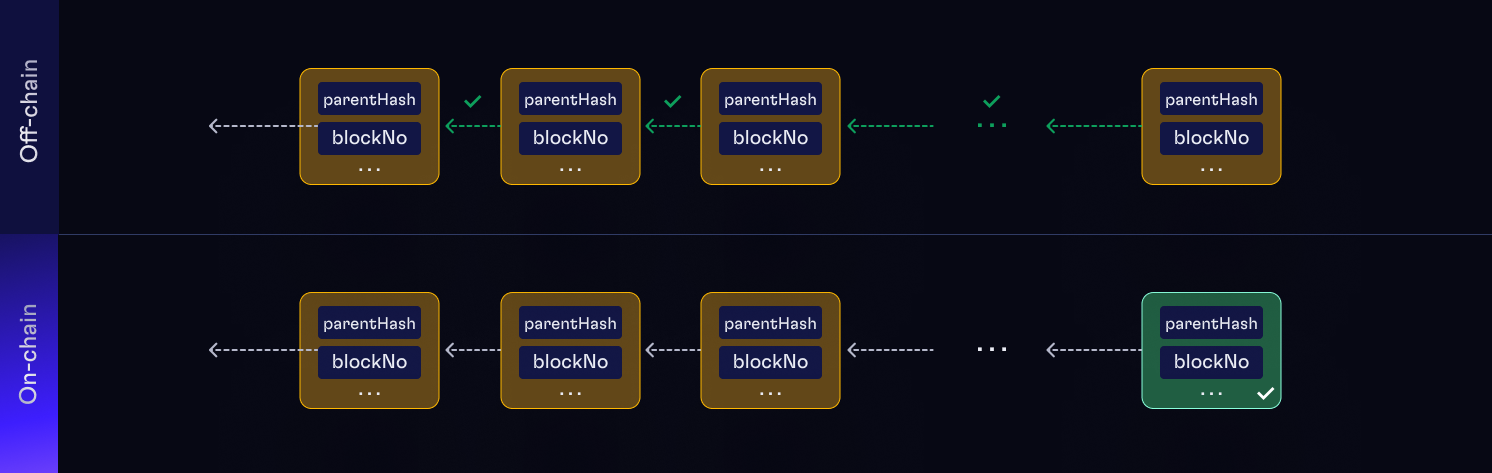

vlayer provides time-travel functionality. As a result, state and storage proofs are not connected to a single block hash, but to multiple block hashes. To ensure that all those hashes exist on the chain, it's enough to prove two things:

  • Coherence - all the blocks' hashes belong to the same chain
  • Canonicity - the last block hash is a member of a canonical chain

2-step verification

Coherence

Will be proven using Chain Proof Cache service.

It maintains a data structure that stores block hashes along with a zk-proof. The zk-proof proves that all the hashes contained by the data structure belong to the same chain.

Canonicity

Since the latest hash needs to be verified on-chain, but generating proofs is a slow process; some fast chains might prune our latest block by the time we are ready to settle the proof. Proposed solution is described here.
